The installation process for vinyl sheet piles is far more simple and practical compared to other materials like concrete or wood. That being said,there’s a carefully-planned strategy behind the vinyl sheet pile installation detailed in this article. Read on!
[dcl=7700]
One installation involves an interlocking design for the sheet piles. This interlock is best described as a “double-clutch” design and is substantially less complicated than the thumb and finger design of American manufacture. Arch web and U-type sheets may be rather much easier to splice for extending lengths than Z-sheets. In addition,considering that these locks are rather looser,there is a smaller possibility of binding throughout the setting and driving operation when dealing with exceptionally long lengths.
Arch-web shapes have been used primarily for lighter buildings,for instance,trench shoring,shallow cofferdams in water or on land,light bulkheads for marinas or river port centers,shallow retaining walls and cut-off walls (where strength is less essential than interlock integrity). Big “U” shapes have generally been popular in other parts of the world for all classes of building and construction,probably since Z- type sheets are a more recent addition overseas.
The sheets used in these applications go through hoop tension from internal pressure put in by the retained soil,instead of flexing. As an outcome,the capability to transfer this tension throughout the interlocks is essential and these sheet pilings have actually interlocks specifically designed for such loads. They are deliberately created as flat profiles so that they will not extend and flatten throughout the arch as would hold true with the arch-web or Z-sheets.
Vinyl Sheet Piles Installation Guide
Opposing thumbs are threaded into the slots formed by the thumb and finger and under hoop tension. The sheets then form a constant circular wall that is earth tight and relatively watertight. The maker ensures the strength between interlocked sheets so that styles can be prepared which will supply adequate safety elements versus failure.
The standard grade is A- 328. This needs that the yield strength be a minimum of 38. 5 ksi. Higher-strength steels are available in ASTM Grades 50 and 60 which have minimum yields of 50 ksi (345 MPa) and 60 ksi respectively. This permits possible economies in meeting computed flexing minutes by integrating lighter sections with greater strength steel.
This grade is ASTM A-690 which is a 50 ksi (345 MPa) yield steel and likewise of a formulation which has demonstrated increased life in salt-water splash zones compared to regular grades. Permitted tensions for style of sheet pile structures are generally based on about 65% yield (25 ksi for the standard A 328 grade).

All about Vinyl Sheet Piles
Some space is typically enabled for momentary tensions. Wide flange beams are normally considered the most efficient structural units for dealing with loads that result in bending moments establishing. A wall constructed entirely of interlocking wide-flange beams would be challenging to construct and would be inefficient from the perspective of wall face coverage.
The fundamental design integrates one large flange with two light Z-shapes as the fundamental unit. By including large flange in the unit,raised area moduli,well above anything achievable from plain sheets,can be recognized. The system is not quite as effective as a standard wall when flexing moments are less than about 2 million inch-pounds,because these can be managed with “as-rolled sheets” and high strength steel.

Either the beams are bonded to pairs of Z-sheets or portions of the Z sheet are slit and welded to the beam flanges to supply an interlock. Extremely high area modulus can be acquired using these approaches. Various anchorage systems for sheet pile Walls The top support for the sheet pile wall is supplied by the anchor system.
9 Easy Facts About Installing Sheet Piles

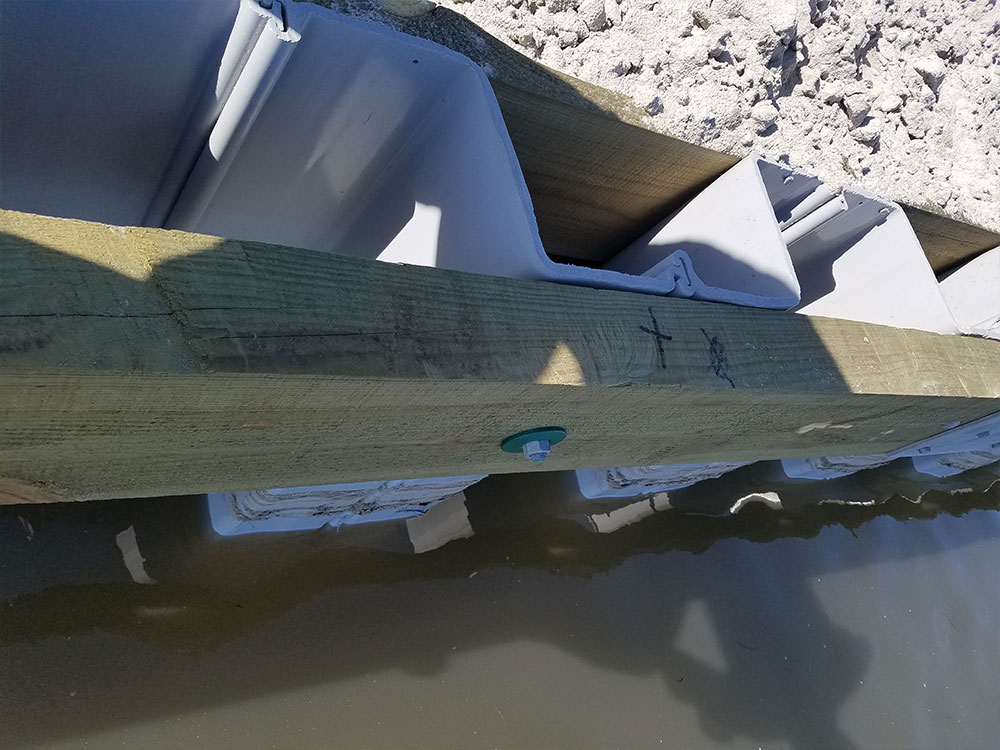

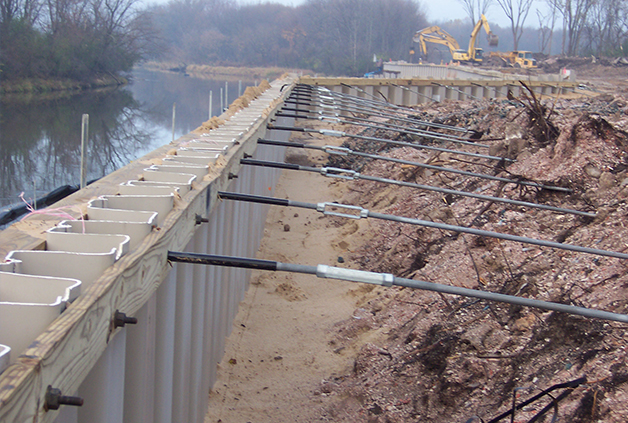

Sometimes,wales lie on the outboard face of the wall but for working bulkheads,they are best placed on the face of vinyl sheet piling. Wales typically include 2 channels,back to back,with spacers. Tie rods,spaced at routine intervals,extend from the face wall through the wales to an anchor wall or anchor piles to the back.
Tie rods are fabricated from steel bars,completions distressed to provide additional metal at the threads,and put together on the job with holding plates,washers,nuts and turnbuckles. Tie rods need to lie as near the low water elevation as possible to decrease the span in between assistances,but need to be above water to assist in installation.

[dcl=7700]
Tie rods need to be coated and covered to safeguard them from corrosion losses and protected from overstressing due to ground settlement. Other techniques of anchoring bulkheads include rock or earth anchor systems and H-pile tension stacks. Earth anchors are helpful where there is not enough space behind to install a more traditional tie rod system.
The One Important Rule for Vinyl Sheet Piling You Have to Consider
The anchor is grouted in location and a pre-test of its capability is possible throughout the prestressing or post-tensioning stage. Steel H-piles may be driven on a battery and attached to the wale system. They work as tension stacks. Steel sheet stacking is virtually the only ways for a professional to keep water out of a building and construction site while the long-term structure is integrated in the dry.
The exception would be where groundwater should be kept or to abide by legal requirements for safety. Straight wall cofferdams are designed using methods similar to bulkheads and maintaining walls. The cofferdam consists of a closed square or rectangle-shaped wall of sheet stacking. An internal system of wales and struts offer assistance.
Out in the water however,conventional bracing systems of walers and struts are still essential. In river cofferdams,external water pressure is the dominant load and gets rid of a lot of uncertainty from the load presumptions given that the loading is triangular at 62. 4 pounds per foot of depth. Below excavated elevation,the pressure consists of submerged soil and water,which increases the pressure.
The Facts About Vinyl Sheet Pile Driving Method Uncovered
[dcl=7700]
Loading conditions both throughout construction of the cofferdam and after dewatering need to be thought about. Stability of soil under and in front of the wall ought to also be analyzed for seepage effects. Internal bracing is spaced so that the sheet piling will not be overstressed. Moment estimations can be based on continuity over the supports.
Loads on wales must consist of end thrust from the other members in the tier. Cross struts are created as columns and situated so that they do not seriously hinder the work within. Circular cofferdams with internal ring wales and no cross struts have sometimes been constructed where it has actually been necessary to keep the interior clean.
Several serious collapses of steel ring-wale braced cofferdams in water have taken place due to incorrect assumptions regarding the nature of tension distribution in the wales. Experienced designers ought to deal with these applications. Aluminum sheet piling has actually been readily available considering that 1969 in numerous kinds and has had an excellent success rate during this duration in both salt and freshwater environments.
